Manufacturing · through our ecosystem
Certified plants. Proven output.
Grandspan clients can call on group factories for boilers, pressure parts, heat-transfer equipment and heavy fabrication. Every package comes with the drawings, materials and inspection records it needs.

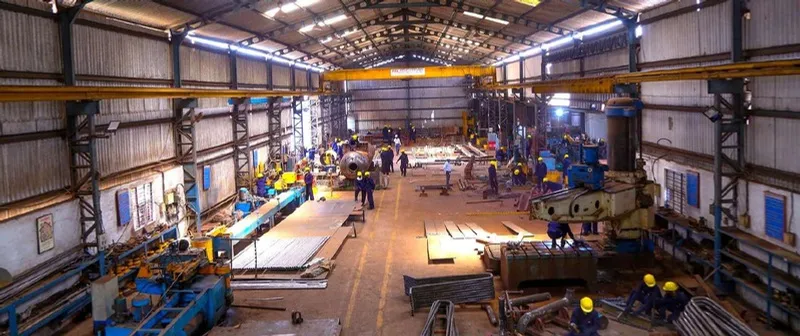

Pune facility
Built for heavy work.
- 100,000 sq ft site
- 35,000 sq ft covered shed
- 16 MT EOT cranes
- 3 × 14 MT mobile cranes
- SMAW / TIG / MIG / ARC / SAW welding
- Tube bending and CNC/VMC machining
- Radial drills, lathes and bandsaws
- All kinds of NDT testing
Manufacturing capacity
Six factories, one order book.
Annual capacity across the group, in metric tonnes.
| Factory | Location | Pressure parts | Non-pressure parts | Equipment |
|---|---|---|---|---|
| Tenaro Global EPC Pvt Ltd | Pune | 5,000 | 8,000 | 1,200 |
| Akaya Engineering LLP | New Delhi | 3,000* | 5,000 | 200 |
| Dehu Engineering & Services | Chennai | 600 | 2,000 | 1,200 |
| Trois Plus Industries | Ahmedabad | 600 | 600 | 200 |
| SourceBridge Solutions | Hyderabad | 300 (non-IBR) | 300 | 100 |
| Total Energy Engineering & Services | Mysore | 200 (non-IBR) | 300 | 100 |
* Under construction. Hyderabad and Mysore pressure-part capacity is non-IBR. Capacity figures are taken from the Tenaro Master Brochure 2026.
Products
Boilers, pressure parts and process equipment.
Equipment is selected and specified around the duty you need and the project specification.
10 to 150 TPH, up to 87 kg/cm²(g)
FBC, travelling grate, dumping grate and pulsating grate designs, plus waste-heat recovery systems. They run on coal, lignite, wood, husk and other biomass, or on waste heat. Benefits include high efficiency, multi-fuel capability, an innovative bed evaporator, better steam purity, and over-bed or under-bed feed.
Economisers & superheaters
Superheaters from 30 to 87 kg/cm²(g), up to 550 °C. Fin-type heat exchangers with serrated, spiral, circular or H-type fins, for waste-heat recovery boilers and hot water and hot air generators. Air preheaters.
Pressure vessels
Feed-water heaters, coil heat exchangers, and feed-water, blowdown and flash tanks.
Plant equipment
ID and FD fans, aerofoil meters, single-flap and multi-louvre dampers, metallic and non-metallic expansion bellows, steam and gas silencers, screw conveyors and bag filters.
Boiler & ESP spares
More than 35 standard spares lines, including nozzles, grate bars, electrodes, insulators, ferrules and access doors.
Projects
On site, at scale.
Pressure-part fabrication and erection on boiler and power-plant projects delivered by the group.
Boiler and ESP spares we supply (IBR and non-IBR)
- Scalloped plates for SH coils
- Shields for bed, superheater and economiser coils
- Grate bars for TG, DG and PG
- Air heater tubes and tube sheets
- Air nozzles for AFBC boilers
- Air heater assemblies
- Airbox assemblies and distributor plates
- Mixing nozzles
- Fuel nozzles and caps
- Air nozzles for CFBC boilers
- Pocket feeders and rotors
- Drag chains and feeders
- Emitting electrodes
- Collecting electrodes
- Ash feeders
- Impeller and shaft assemblies for PA, SA, ID and FD fans
- Cooling fans
- Seal air fans
- Bushing, support and shaft insulators
- MDC cones and inlet/outlet guide vanes
- SS ferrules
- Silencers
- Thermowells
- Manhole doors
- Clinker cleaning doors
- Expansion bellows
- Dampers
- Top and bottom suspension frames
- GD screens
- Base frames for fans and pumps
- Water treatment spares and consumables
- Water treatment plant and boiler chemicals
Materials of construction
Tubes
SA 210 Gr A1 and Gr C, BS 3059 Gr 320 ERW and Gr 360 seamless, SA 213 T11, T22, T91, TP 304 H and TP 347 H.
Plates, drums and headers
SA 515 Gr 70, SA 516 Gr 70, SA 106 Gr B, SA 335 P11 and P22, IS 2062, and SA 240 Gr 304. Drums up to 75 mm thick.
Studs, ferrules and fins
SAE 1018, and SS 304, 310 and 316. Fins in IS 2062, 5 to 6 mm thick.
Business verticals
From a single spare to a complete plant.
Pressure-part spares
Certified IBR spares for existing boilers and power plants, to keep operations running.
Boiler & power-plant EPC
End-to-end engineering, procurement and construction for boiler and power projects.
Design & supply
Custom-engineered products and heavy fabrication built to the client's specification.
Site services & trading
Skilled site work, plus sourcing of engineering products and raw materials.
Manufacturing, certification and capacity sit with group companies of Tenaro Global EPC and the Dehu Group. Grandspan coordinates scope, documentation and the client interface for UK and international enquiries.
For supply to Great Britain, pressure equipment is placed on the market under PE(S)R 2016 and structural steelwork under BS EN 1090, with UKCA or CE marking. See UK compliance.
